Bay and bow windows add real square footage and a wide, panoramic view that flat windows simply can’t match. In Coral Springs, where homes range from 1970s ranch styles to newer Mediterranean builds, a projecting window changes the feel of a living room or breakfast nook immediately. TruePane Windows & Doors fabricates and installs impact-rated bay and bow configurations across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, anchored to your specific wind zone. We handle the structural support, the flashing, and the permit paperwork that goes with an HVHZ-rated opening. Call (727) 261-2215 to talk through your project.

Call (727) 261-2215

Product Overview - Bay & Bow Windows

A bay window is typically a three-panel projection: a large fixed center unit flanked by two operable or fixed angled panels. A bow window uses four or more panels arranged in a gentle arc. Both create a projecting multi-panel configuration that extends outward from the wall plane, which adds usable interior floor space and gives you sightlines to the sides of your property, not just straight ahead.

In hurricane-prone South Florida, that architectural projection creates structural demands a flat window never faces. The entire assembly has to resist wind pressure from multiple angles, shed water correctly at the roof and sill, and stay anchored to the home under cyclic loading. Our bay and bow windows are built with laminated impact glass as the foundation, supported by either aluminum or vinyl frames selected for your opening size and exposure. The seat board, head board, and angled flanking units are all engineered as one system, never pieced together on site from mismatched components.

For Coral Springs homeowners, this product solves two problems at once. You get the natural light and interior space of a projection window, and you get an impact-rated opening that meets Florida Building Code requirements without adding shutters or secondary protection. The glass is laminated impact with a PVB interlayer. The frames are custom-fabricated to the opening. Nothing is pulled off a shelf and made to fit.

Technical Specifications

• Frame materials: Aluminum or vinyl, selected for the specific opening size and wind load requirements.
• Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, clear glass.
• Finish options: White, almond, bronze, black, and tan across the frame profiles we offer.

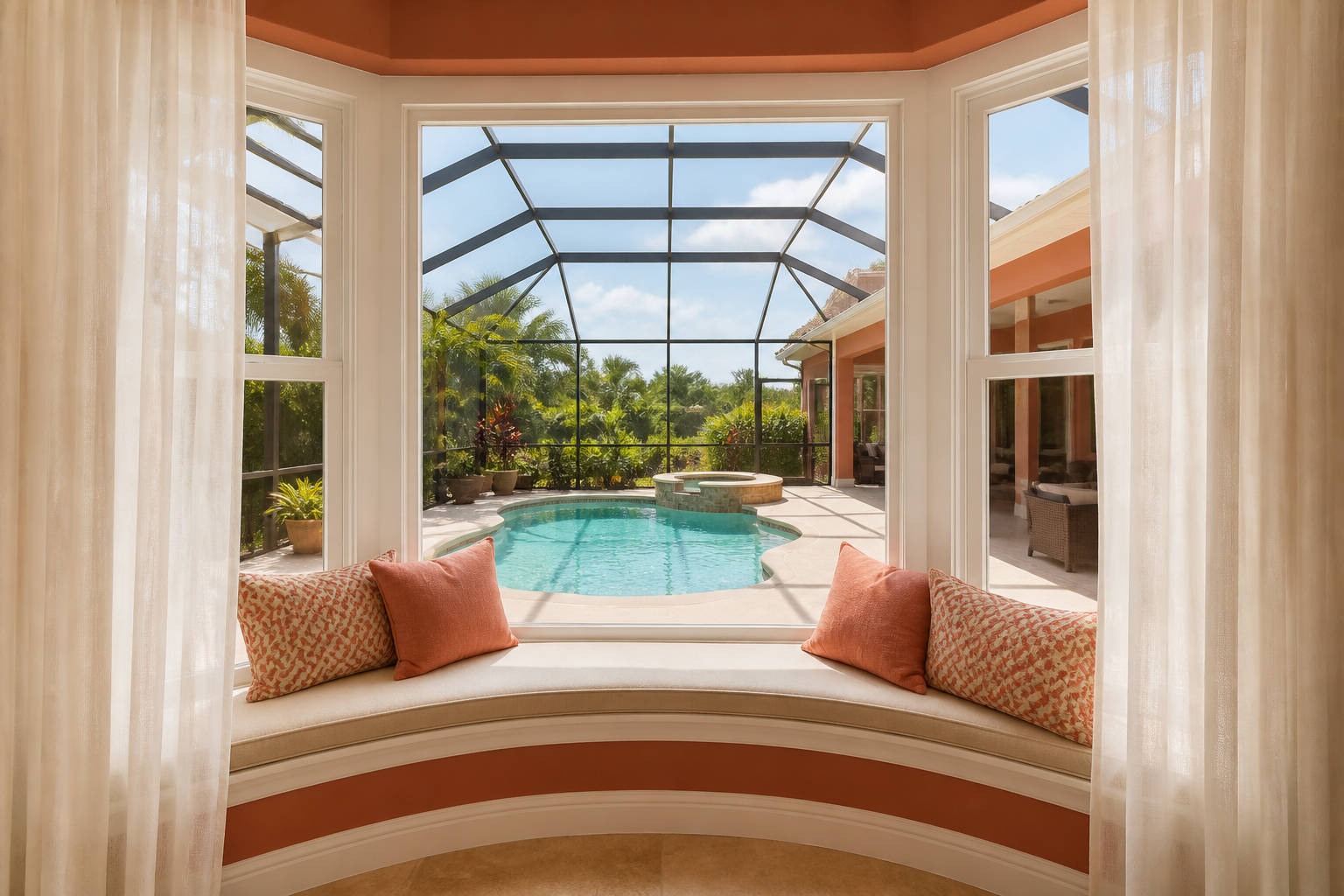

• Sill options: Standard sill for a clean, minimal look, or a seat/shelf sill that extends the interior ledge into usable space for plants, cushions, or reading nooks.
• Size range: Custom fabricated to the opening. There is no stock bay or bow size. Every unit is built to your rough opening dimensions and your wind zone requirements.
• Design pressure: Matched to your wind zone, up to +/-100. We never specify a higher rating than your location actually requires.
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers available per configuration, verifiable on your specific quote.

Hurricane & Compliance Performance

Laminated Impact Glass
Two panes of glass bonded with a PVB (polyvinyl butyral) interlayer. When impacted, the glass fractures but the interlayer holds the fragments in the frame, keeping the building envelope sealed. This is the core of the impact rating on bay and bow configurations.

Miami-Dade NOA / Florida Product Approval
Every bay and bow configuration we sell carries product approval documentation. Miami-Dade NOA (Notice of Acceptance) and Florida Product Approval numbers are issued per configuration, so the exact numbers are verified on your specific quote and matched to your permit submittal.

FBC / HVHZ Compliance
Engineered to Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements. That includes the structural anchoring, the seat board design, and the connection details, not just the glass package.

TAS 201 / TAS 202 / TAS 203 Testing Context
HVHZ-rated products like this one are tested under the TAS protocol family. TAS 201 covers large-missile impact, TAS 202 covers cyclic wind-pressure loading, and TAS 203 covers forced-entry resistance. These are the tests that back the NOA, and they simulate what a window faces during and after a storm event.

Design Pressure Matched to Your Wind Zone
We spec design pressures matched to your wind zone, up to +/-100, never higher. Over-specifying a window doesn’t add safety. It adds cost and weight. The right rating for your Coral Springs location is what we quote.

Energy Performance
Low-E and insulated glass options are available for the center and flanking units where solar gain is a concern. For a west-facing bay in Coral Springs sitting in afternoon sun, Low-E insulated glass keeps the room more comfortable without changing the impact performance.

Color & Glass Options

White and almond remain the most common frame finishes on bay and bow windows in Coral Springs, particularly on the older ranch and Mediterranean homes throughout neighborhoods like Ramblewood, Cypress Glen, and Westchester. They disappear visually and keep the focus on the view. Bronze and black work well on newer construction or homes with darker roof lines and modern trim packages, giving the projection a crisper silhouette. Tan fills the gap for homes with warm stucco tones that need something between white and bronze.

On glass, clear laminated impact is the workhorse option and the most affordable path to code compliance. Tinted glass cuts glare and heat gain on east and west exposures, which in Coral Springs means less afternoon heat in a rear-facing bay. Low-E insulated glass is the pick when the window will face direct sun for most of the day and you want to keep the room comfortable without resorting to heavy window coverings. Every glass choice is available in the laminated impact construction required for HVHZ compliance. The energy upgrade does not replace the impact layer. It adds to it.

Installation by TruePane Windows & Doors in Coral Springs

A bay or bow window is only as good as the installation underneath it. A product with a Miami-Dade NOA and a full Florida Product Approval package can still leak, sag, or fail if it’s set wrong. The NOA rating assumes correct installation. That’s why we install every bay and bow window ourselves, with our own crews, using the manufacturer’s approved anchoring details and our own field procedures.

Every project starts with a pre-install inspection of the rough opening, the header, the existing seat board (if there is one), and the wall structure carrying the projection. Coral Springs homes from the 1970s and 1980s often have framing that was never intended to carry a projecting window. We check the structure and add support where needed before the new unit goes in. The window is set level, plumb, and square, with shims placed at structural points, never mid-span. The perimeter is sealed with AAMA 812 low-expansion foam, which air-seals without bowing the frame, and the exterior is flashed to shed water at the head and sill. Our installation practice follows AAMA 2400/2410 standards throughout.

After install, we run a water test on the rough opening and the new unit, walk the interior and exterior with you, and leave the site clean. Permitting awareness matters here too: Coral Springs sits within an HVHZ jurisdiction, and product approval numbers have to be listed on the permit submittal. We provide that documentation with your quote so your permit package is complete before we ever schedule the install.

Coastal exposure varies within Coral Springs. A home on a canal or near the eastern edge of the city sees higher design pressures than a home further west. Your quote reflects your actual wind zone and approved configurations, never a one-size-fits-all assumption. Call (727) 261-2215 to schedule a free on-site measurement.

Frequently Asked Questions - Bay & Bow Windows

What wind zone or design pressure is the Bay & Bow Window rated for?
The design pressure is matched to your specific wind zone, up to +/-100, and is never higher than your location requires. The exact rating for your Coral Springs address is confirmed during the quote process and documented on your permit submittal.

What is the lead time for a bay or bow window?
Because these are custom fabricated to the opening, lead time typically runs several weeks from final measurements and approval of shop drawings. The exact timeline depends on the series and glass package you select. We confirm it on your quote so you can plan around it.

Does a bay or bow window require a Miami-Dade NOA or Florida Product Approval submittal for my permit?
Yes. Coral Springs is in an HVHZ jurisdiction, and the permit package includes product approval documentation. We provide the Miami-Dade NOA and Florida Product Approval numbers for your specific configuration with your quote, so your permit application stays complete and doesn’t get kicked back.

Can I customize the size or configuration of a bay or bow window?
Yes. Every bay and bow unit we install is custom fabricated to the opening. Center and flanking panel widths, the projection depth, the sill style, the glass package, and the operable versus fixed configuration are all selected for your home, not pulled from stock.

How do I maintain the frame and glass?
Wash the glass and frames with mild soap and water, and keep the weep holes at the sill clear of debris. Check the sealant line where the window meets the exterior wall once a year. If you see gaps or cracking, call us before water has a chance to get behind the cladding. (727) 261-2215.

Get a Quote - Bay & Bow Windows in Coral Springs

If you’re planning a bay or bow window in Coral Springs, start with a free on-site measurement. We’ll inspect the opening, confirm the structural requirements, and put together a line-item quote for the exact configuration you’re after. Call (727) 261-2215 to schedule yours.

Written by the team at TruePane Windows & Doors, serving Coral Springs, FL with impact-rated window and door installations.
